We are the leading manufacturer and supplier of a huge range of Grasso Compressor Spare Parts. Our parts are extensively exported to many countries in the Middle East - UAE, Oman, Bahrain, South East Asia - Malaysia, Europe - UK, and African countries.
We supply these parts to several traders abroad as well as direct end users, and we have earned a great reputation as a reliable name in the business.
Samson offers interchangeable spare parts for Grasso compressor models in the RC series, including RC 6, RC 11, RC 13, and others. We maintain an inventory of spare parts for Grasso RC series compressors, such as RC 11, RC 12, RC 9, RC 6, and more.
Our inventory includes bearings, intermediate bearings, crankshaft & crankshaft assemblies, shaft seals assemblies, pistons and connecting rod assemblies, cylinder liners, valve lifting mechanisms, suction & discharge assemblies, oil pump assemblies, oil filters, nuts, screws, hex bolts, gaskets, and more.
| Minimum Order Quantity | 1 Piece |
| Compressor Brand | KIRLOSKAR / GRASSO |
| Material | SS |
| Brand | Grasso / Kirloskar |
| Spare Type | CRANKSHAFT AND HOUSING |
| Air Compressor Model | GRASSO / KC 2 CYL TO 12 CYLINDER - FULL RANGE, PC2, RC 9 RC 11, RC12 ETC |
| Dimension | 550 MM ONWARDS |
| Driven By | Flywheel and motor pulley |
| Finishing Type | GRINDING |
| Number Of Cylinders | 2, 4, 6, 8, 10 & 12, CYLINDER |
| Packaging Type | Wooden box |
| Power Source | MOTOR AND FLYWHEEL PULLEY |
| Surface Treatment | FINISH GRINDING |
| Weight | 50 KGS TO 150 KG |
| Application | 1, 2, 3, 4, 5, 6, 9, 10, 12 cylinder compressors |

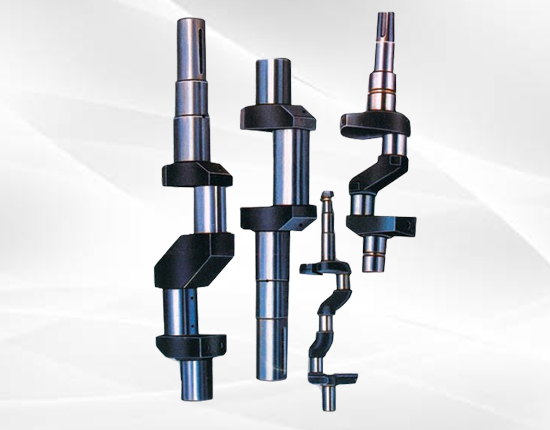

We have engaged in manufacturer and supplier of a wide array of Crankshaft Assembly for Grasso Compressor. Customized as per the requirements of our clients, these products have separate measurements of solar and infrared. Tested as per the international standards of quality, these products are quite popular among our clients.

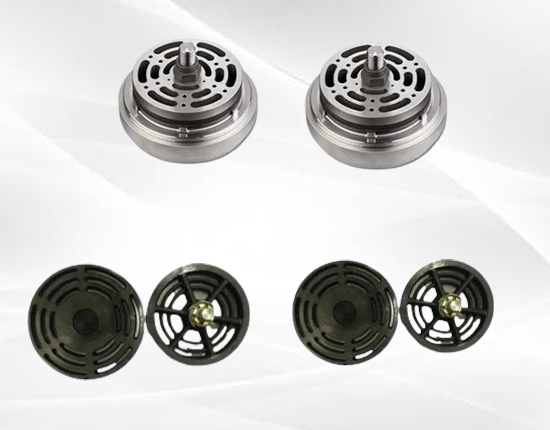

We are leading manufacturer and supplier of a wide array of Suction Discharge Valve. Our team has enough expertise to test these products as per the international standards of quality. We also have a customized version of these products as per the specifications and needs of our clients.
| Compressor Brand | GRASSO / KIRLOSKAR |
| Media | Gas |
| Color | BLACK / STEEL COLOR |
| Compressor Type | Reciprocating Compressor |
| Pressure | High Pressure |
| Material | Steel, Alloy |
| Air Compressor Model | RC11, RC12, RC9, KC SERIES, AC SERIES INTERCHANGEABLE |
| Model | RC 9, 10, 11 AND 12 AND KC 2, KC3, KC4, KC6, KC8, KC9, KC12, PC2, KCX SERIES AND MANY OTHERS |
| Weight | 1.5 KG EACH |
| Part Description | OEM Drawing Number |
| Buffer Spring (Spring 18*88*2.4*115) | 1131181 |
| Cup Spring 16 | 2718410 |
| Delivery Valve Assly.160 ( 3361200350) | 2719110 |
| Split Pin | |
| Stroke Limiter Discharge | 2718360 |
| Spring Valve Discharge (Sinu Sodial Spring 58*69) | 1133158 |
| Spring Valve Discharge (Sinu Sodial Spring 67*87) | 1133176 |
| Spring Valve Discharge (Sinu Sodial Spring 94*105) | 1133194 |
| Ring Valve Discharge (58*69*1) | 1131149 |
| Ring Valve Discharge(76*87*1) | 1134076 |
| Ring Valve Discharge(94*105) | 1134094 |
| Discharge Valve Seat 160 | 2718360 |
| Center Bolt(Fitted Bolt M16*59) | 124859 |
| Suction Stroke Limiter Suc.Valve 160 | 2718310 |
| Suction Valve Spring(Sinu Sodial Spring 17*200) | 1133271 |
| Suction Valve Ring( 171*200*1) | 1134171 |
| Minimum Order Quantity | 1 Piece |
| Brand | Grasso, Kirloskar |
| Material | MS and Alloy Steel |
| Model | KA85, PC2, KC, KCX, RC9, RC10, RC11, RC12 |
| Usage/Application | Industrial |
| Max Flow Rate | Duly Hydro Tested |

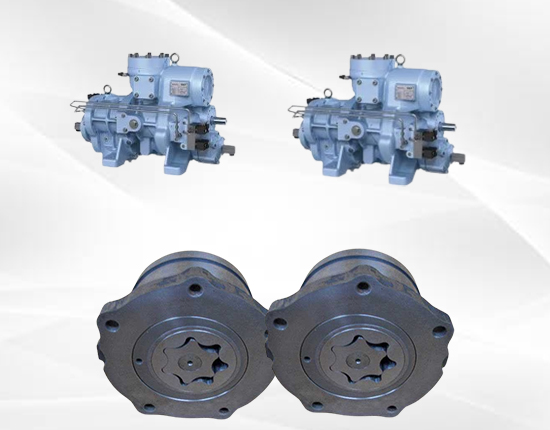

We are supporting a range of Oil Pump Assemblies and their subcomponents for Grasso, Kirloskar Refrigeration Compressors. Models PC2, RC9,KC, KCX, AC70, AC80 RC11, RC12 series compressors and many more.
| Description | OEM Drawing Number |
| Oil Pump Assly | |
| Pump Housing with Bushes | |
| Driving Gear Complete(Gearwheel 4*9 D18) | 1937809 |
| Driven Gear Complete(Gearwheel 4*9 G18) | 1937859 |
| Bearing Bush(18*24*61) | 1146718 |
| Shaft Oil Pump Driving | |
| Shaft Oil Pump Driven | |
| Gear Only | |
| "O" Ring | |
| Oil Pump Cover | 2718600 |
| Pressure Reducer Pin (Control Plunger) | 2608911 |
| Piston Pressure Reducer(Control Piston 24K 110M) | 2616821 |
| Hyd.Time Delay Plunger | |
| Piston For Time Delay(Piston Assly.30K110) | 2617830 |
| Valve Plate For Time Delay | |
| Stroke Limiter | |
| Spring 1.1*15*97 | 1131117 |
| Packing | |
| Plug 1" BSP(Plug G33) | 136336 |
| Piston Overflow Valve (Plunger 14 K 110M) | 2616811 |
| Spring | |
| Packing | |
| Plug 3/8"BSP(Plug G17) | 136176 |
| Packing | |
| Plug 1/4"BSP(Plug G13) | 136136 |
| Packing | |
| Plug 1/8"BSP | |
| "O"Ring | |
| Hydraulic Time Delay Plunger | 2616801 |

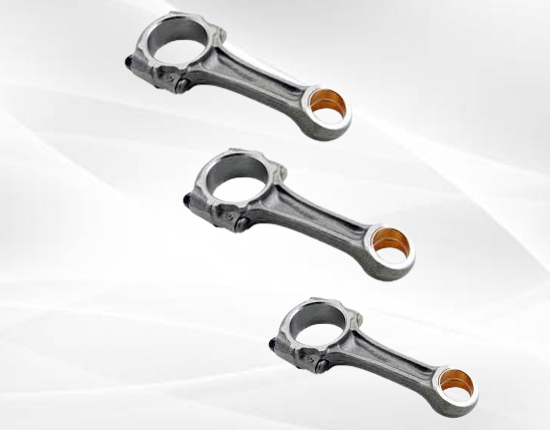

We are offering Piston Connecting Rod Assembly Interchangeable to our client.
CONNECTING RODS SUITABLE FOR:
| Minimum Order Quantity | 1 Piece |
| Brand | Grasso / Kirloskar |
| Application | Compressor |
| Rod Type | for GRASSO / Kirloskar compressors |
| Model Number/Name | RC9, RC11, RC12, AC70, AC80, PC2 and many others, RC9, RC10, RC11 KC, K110 |
| Material | Aluminium, EN9, Casting SG iron |
| Dimension | Dia 160 mm |
Other Details:
| Description | OEM Drawing Number |
| Piston Assay.(160*50*160K) | 2417011 |
| Gudgeon Pin(36*50*148 KC) | 2416320 |
| Piston | 2417010 |
| Plate Safety(Locking Plate M12S TAB) | 1114642 |
| Bolt Safety(Locking Bolt M12*35) | 144635 |
| Set Of Piston Rings | 974160 |
| Connecting Rod Assay (590*27*FA*110) | 2408500 |
| Gudgeon Pin Bush(Bearing Bush 50/58) | 1146650 |
| Connecting Rod With Bolt | |
| Big End Bag.Half Std.(Bearing Shell 90*53) | 1144590 |
| Connecting Rod Bolt MF - 16 | 111801 |
| Lock Plate M16 | 1113802 |
| Hex.Nut MF - 16 | 147805 |
| Bearing Needle | |
| Spacer Ring |

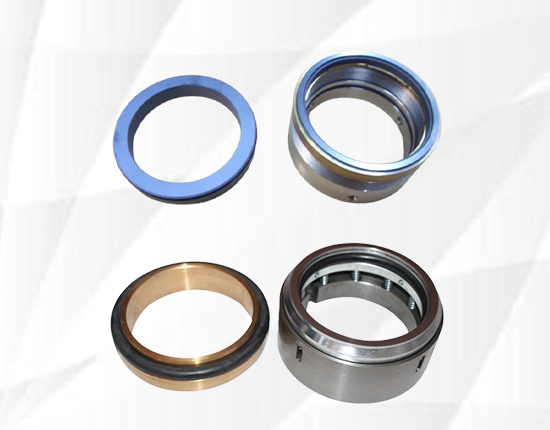

| Minimum Order Quantity | 1 Unit |
| Material | Carbon Steel, Brass |
| Spare Type | Shaft Assembly Seal |
| Usage/Application | Industrial |
| Application | Interchangeable For Grasso |
| Shape | Round |
| Country of Origin | Made in India |
| Part Description | OEM Drawing No. |
| Shaft Seal Cover (Shaft Seal Hsg.FA110) | 2608200 |
| Hex.Nut M12 | |
| Packing | |
| Blind Plug 1/4" BSP(Plug G21) | 136216 |
| Union Socket Screw Assly. | |
| Shaft Seal Complete( 85MO) | 962086 |
| Rotary Sealing Ring | |
| "O"Ring Outer 7.5*95 | 952756 |
| "O"Ring inner | |
| Set Screw M4*8 | |
| Stationary Sealing Ring Brass | |
| Spring | |
| Pressing Ring | |
| "O"Ring 3*150 | 952311 |
| Packing | |
| Union Socket Screw Assly |
| Minimum Order Quantity | 1 PIECE |
| Structure | CAST IRON |
| Material | MS |
| Bearing Cover KC | 2119821 |
| Shape | Round |
| Country of Origin | Made in India |

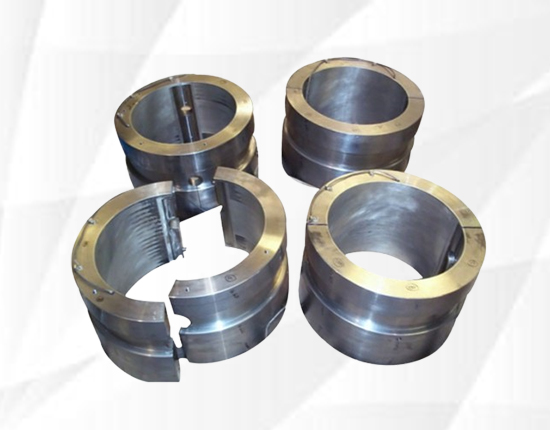

We have been one of the major manufacturers and exporters of a wide range of Bearing Covers. Our team of skilled and trained professionals has the expertise to test these products as per the international standards of quality. The customized range of these products is also quite popular among our clients owing to its dimensional accuracy.
| Bearing Covers And Intermediate Bearings Interchangeable For Grasso Description | OEM Drawing Number |
| Bearing Cover Drive End (KC) | 2118821 |
| Bearing Bush Drive End Std.(90*96*105) | 1146290 |
| Stud for Bearing Cover | |
| Bearing Cover Pump End (K110M) | 2116821 |
| Bearing Bush Pump End Std.(90*96*107) | 1146191 |
| Stud For Bearing Cover | |
| Intermediate Bearing Assly(Bearing Block 90M) | 1169901 |
| Connecting Rod Bolt | |
| Safety Plate(Locking Plate M16) | 1113802 |
| Hex.Nut M16*1.5 | |
| Thrust Ring Bronze 96*125*9 | 1168969 |
| Gasket 1.5thk | 903252 |
| Gasket 1.0thk | 902252 |
| Hex.Head Screw M20*45 | |
| Stud M16*35 | |
| Hex.Nut M16 | |
| Locking Ring M20 S | 1113149/1114142 |
| Bearing Block Halves 90M | 1144890 |
| Bearing Cover K110MSB | 2117831 |
| Bearing Cover KC | 2119821 |
| Minimum Order Quantity | 1 Unit |
| Brand | Grasso / KC series interchangeable - CYLINDER LINERS |
| Dimension | Diameters 110 and 160 mm |
| Compressor Brand | KIRLOSKAR / GRASSO |
| Spare Type | CYLINDER LINERS |
| Air Compressor Model | For GRASSO / KIRLOSKAR Models RC11, RC 12, KC, KCX, PC2, AC70 AC80 etc |
| Diameter | 110 mm, 160 mm and many others |
| Shape | Round |
| Material | Casting |
Our team of skilled and trained professionals has the necessary expertise to provide our clients with a range of Compressor Cylinder Liners. These products are customized as per the industrial standards of quality before being delivered to our clients. We also have a specialized team for the testing of these products to ensure they meet international quality standards.
| Description | OEM Drawing Number |
|---|---|
| Cylinder Liner | 2318010 |
| Hex. Nut M6 | 1131209 |
| Pressing Ring Assly. (within) | 2716510 |
| Spring (2*10*27*110) | |
| Tap Bolt M6*140 | |
| Lever (Semi-Circular Lever) | 2716610 |
| Fulcrum Pin (Cylindrical Pin 6*45) | 1106645 |
| Lever Assly. | |
| Gasket 1.5thk (Oil Sealing Ring 207*216*1.5) | 903306 |
| Gasket 0.5thk | |
| Gasket 1.0thk | 902206 |
| Hex. Head Bolt M10*70 | |
| "O" Ring | |
| Spring (3.2*25*3.5*42.5) | 1131325 |
| Unloader Piston Assly. (Control Piston Assly.) | 2718670 |
| Unloader Piston Complete | |
| Teflon Ring | |
| Spacer Ring | |
| Circlip | |
| "O" Ring | |
| Housing for Piston | 2716650 |
| Packing | |
| Set Nipple | |
| Locking Nut | |
| Curtain Spring (Spring Wire 0.75*3.1) | 1132081 |
| Cylinder Liner Assly (160 KC) | 2318010 |
| Hole Size | 3-5 mm |
| Hole Shape | Round |
| Thickness | 2-4 mm |
| Brand | Samson |
| Material | MS |
| Shape | Round |
Our team of skilled and trained professionals has the necessary expertise to provide our clients with a range of Compressor Cylinder Liners. These products are customized as per the industrial standards of quality before being delivered to our clients. We also have a specialized team for the testing of these products to ensure they meet international quality standards.

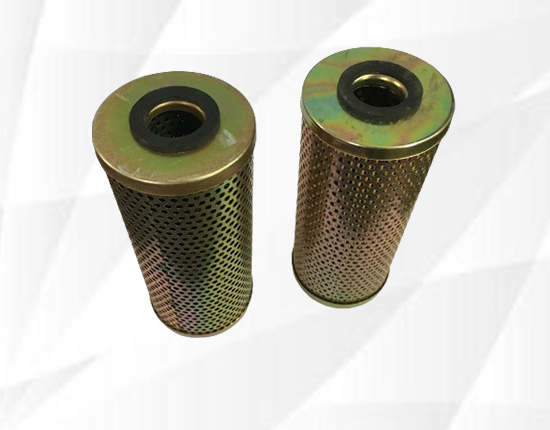

| Description | OEM Drawing Number |
| Oil Suction Filter Assly. | 4405620 |
| TAH 8 Valve Assly. | |
| Packing | |
| "O" Ring | |
| Filter Wire Gauge(Gauze Filter Element) | 716171 |
| Spacer Ring(Washer M24*38) | 1113738 |
| Spring (2*29*3*32) | 1131209 |
| Bottom Hsg.Assly | |
| Oil Discharge Filter Assly. | 711022 |
| Top Hsg.Assly.(Filter Hsg.17*80*6) | 4802417 |
| Paper Filter | |
| Packing | |
| Rubber Asbestos Seal Ring 109*119*2 | 904109 |
| Filter housing | 4802416 |
